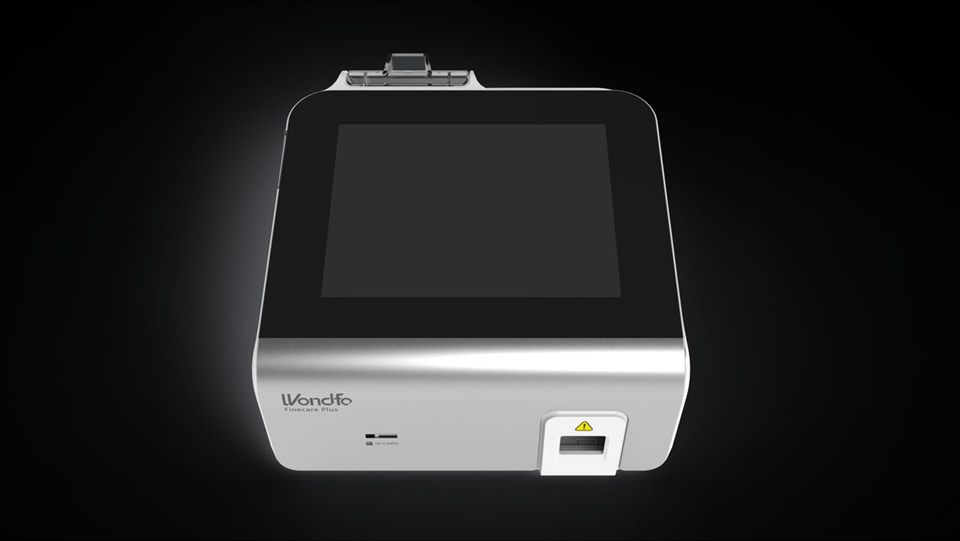

Point-of-Care Analyser · Fluorescence Immunoassay
Finecare FIA
Meter II Plus
FS-114
80+ tests including HbA1c. Results in 3–15 minutes.
Built for small labs and pharmacy testing services.
Key Features
Built for the modern point-of-care environment
Large LCD capacitive touchscreen with an intuitive graphical interface. Supports multi-user management — ideal for busy clinical settings.
Wi-Fi, Ethernet, RS-232 and 4 USB ports. Connects directly to LIS/HIS systems for instant result transfer across your network.
Each test kit includes an ID chip that auto-loads batch and calibration data. No manual calibration ever required.
Auto-prints results in real time. Supports an external printer for high-volume sites. Stores 10,000 test results internally.
Up to 21 hours standby and 200+ tests without mains power. Perfect for ambulances, care homes, and remote or mobile clinics.
Multiple testing modes including a quick mode for large sample volumes. Compact at just 239 × 278 × 148 mm and 3.3 kg.
Operation Procedure
How to use the Finecare FS-114
Collect a small blood, serum or plasma sample using the sampler provided in the kit.
Add the sample to the buffer diluent tube provided and mix well.
Drop 75 µL of the mixed sample into the test cassette, then insert the cassette into the analyser.
Results appear on screen in 3–15 minutes. Automatically printed and sent to LIS/HIS.
Technical Specifications
Full specification
| Dimensions | 239 × 278 × 148 mm |
| Weight | 3.3 kg |
| Display | 8" LCD Capacitive Touchscreen |
| Operating System | Linux |
| Battery | 7,800 mAh internal rechargeable |
| Standby Time | 21 hours |
| Tests per Charge | ≥200 without mains power |
| Test Device Tray | 40 positions |
| Memory | 10,000 test results |
| Printer | Built-in thermal + external support |
| Connectivity | Wi-Fi · Ethernet · RS-232 · USB ×4 |
| HIS / LIS | Compatible |
| Sample Types | Whole blood · Serum · Plasma · Urine |
| Sample Volume | Typically 75 µL |
| Result Time | 3–15 minutes |
| Reagent Storage | Room temperature |
| Certifications | CE · NGSP · ISO 13485 |
Why the FS-114?
Manufactured by Wondfo Biotech under ISO 13485. Supplied in the UK & Ireland by HJT Medical Supplies in partnership with CIGA Healthcare Ltd. BIVDA member.
Applications
Designed for your clinical environment
Integration
Connects to your existing infrastructure
LIS / HIS Integration
Bidirectional connectivity with Laboratory and Hospital Information Systems over Wi-Fi or Ethernet. Results transmitted automatically as they are generated.
Wired & Wireless
Ethernet plus Wi-Fi for flexible placement. RS-232 for legacy system compatibility. Four USB ports for peripherals and data export.
Multi-User Management
Secure Linux OS with role-based accounts, operator logging, and audit trails. Custom management modules for multi-analyser sites.
